TTK Chitra Heart Valve Substitutes (Rigid Tilting Disc)
Intended Use
The Rigid Tilting Disc TTK Chitra Heart Valve Substitute is intended for use as a replacement valve in patients with a diseased, damaged or malfunctioning aortic or mitral heart valve. This device may also be used to replace a previously implanted prosthetic heart valve.
Types

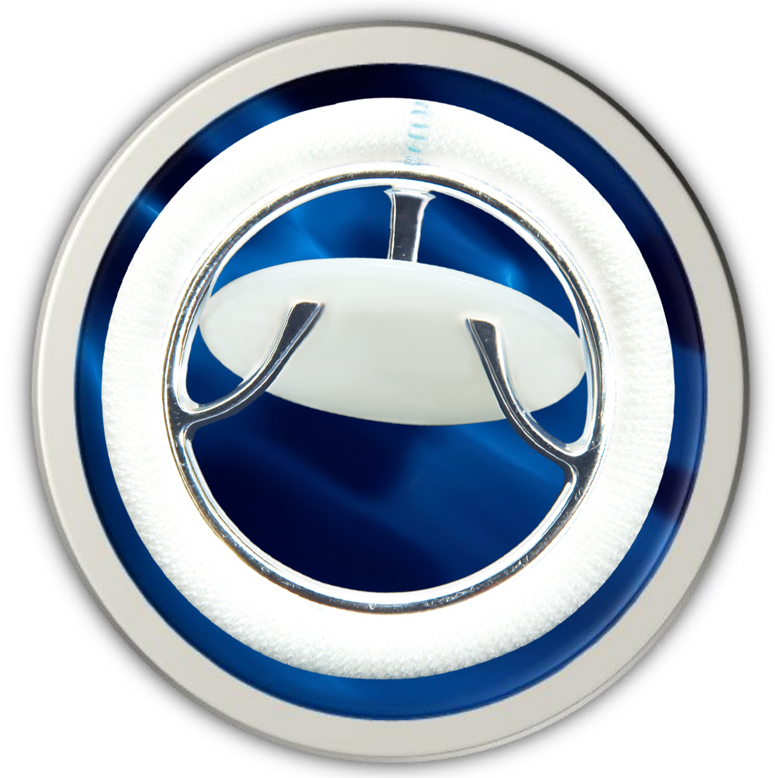

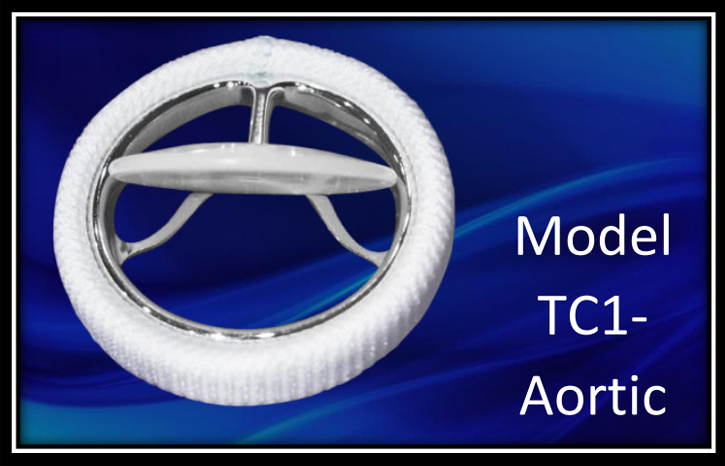

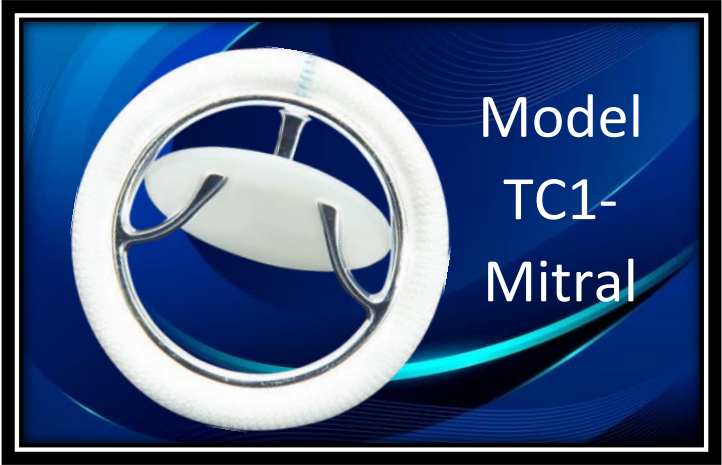

Product Description - Model TC1
TTK Chitra Heart Valve is a long term use medical device shall be assigned to Class D, as it is intended to be used in direct contact with the heart, the central circulatory system.The two types of Heart Valves manufactured are Aortic and Mitral which differs only in the shape of the Sewing Ring.

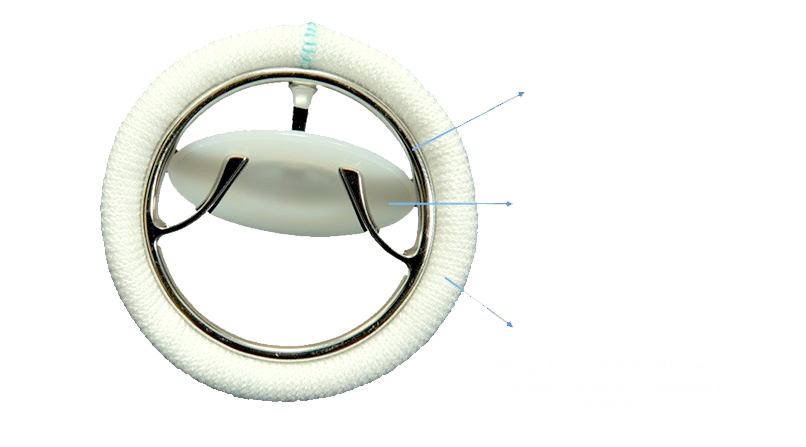

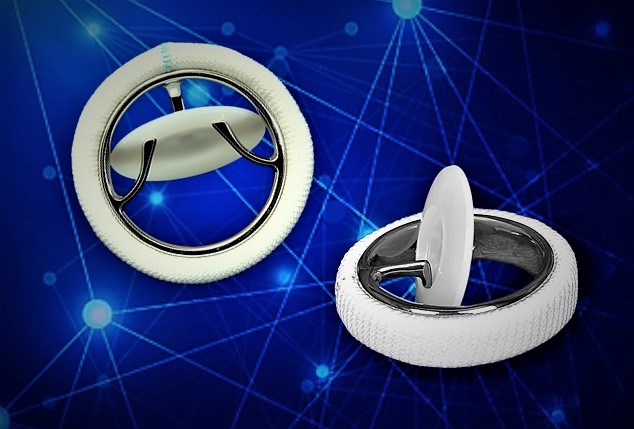

The valve incorporates a Tilting Disc from Ultra High Molecular Weight Poly Ethylene (UHMWPE), pivoted eccentrically in the metallic frame integrally machined from Cobalt-Chromium alloy (Haynes 25). The sewing ring of Poly Ethylene Terephthalate (PET) is fitted snugly around the frame and is used to suture the valve at the intended position in the heart.
Types and Variants
The two variants of TTK Chitra Heart Valves are Model TC1 and TC1-H which differ only in the presence of a pre-mounted accessory in the package.
Heart Valve of Model TC1 is available in 13 different configurations of size and type. The two different types available are Aortic and Mitral
| Sizes(mm) | Types |
|---|---|
| #17 | Arotic |
| #19 | Arotic |
| #21 | Arotic |
| #23 | Arotic / Mitral |
| #25 | Arotic / Mitral |
| #27 | Arotic / Mitral |
| #29 | Arotic / Mitral |
| #31 | Mitral |
| #33 | Mitral |

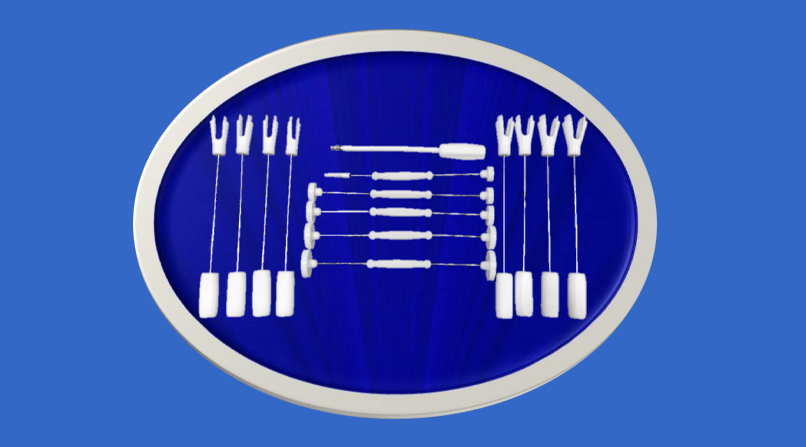

Accessories
Accessory Set Model ASTC1 is used along with TTK Chitra Heart Valves Model TC1.The Accessory Set ASTC1 includes:
- Holder Head
- Holder Handle
- Test Probe with Single-headed malleable sizer
- Double-headed Malleable Sizers

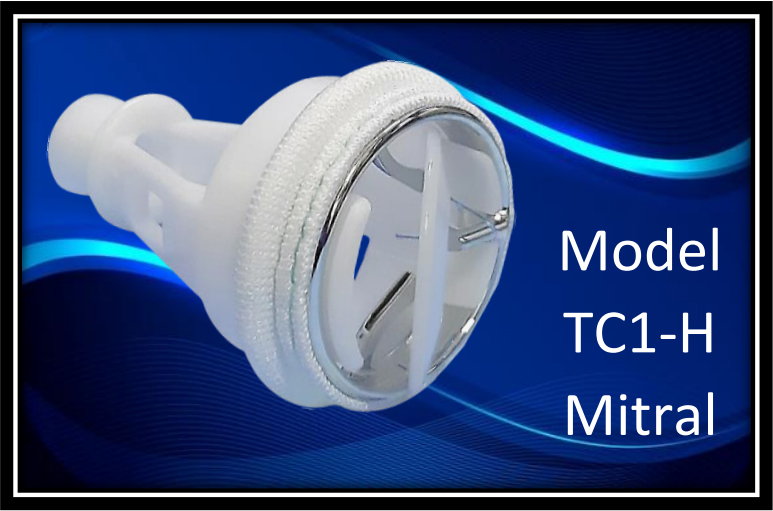

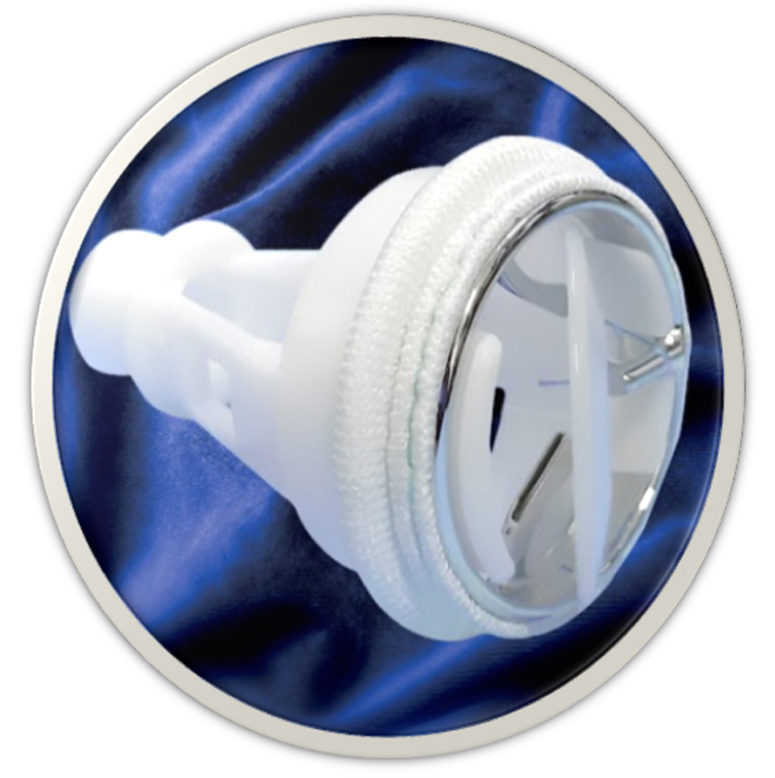

Product Description - Model TC1-H
TTK Chitra Heart Valve is a long term use medical device shall be assigned to Class D, as it is intended to be used in direct contact with the heart, the central circulatory system.The two types of Heart Valves manufactured are Aortic and Mitral which differs only in the shape of the Sewing Ring.

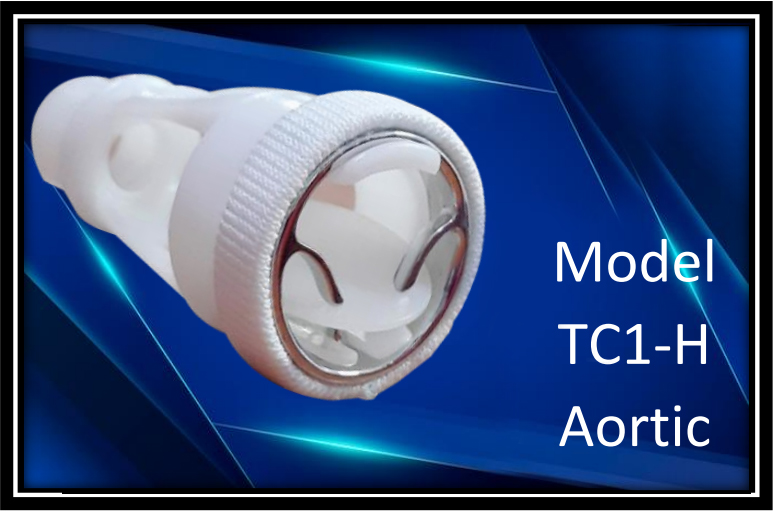

The valve incorporates a Tilting Disc from Ultra High Molecular Weight Poly Ethylene (UHMWPE), pivoted eccentrically in the metallic frame integrally machined from Cobalt-Chromium alloy (Haynes 25). The sewing ring of Poly Ethylene Terephthalate (PET) is fitted snugly around the frame and is used to suture the valve at the intended position in the heart. A premounted holder is attached to the valve for the ease of implantation.
Types and Variants
The two variants of TTK Chitra Heart Valves are Model TC1 and TC1-H which differ only in the presence of a pre-mounted accessory in the package.
Heart Valve of Model TC1 is available in 13 different configurations of size and type. The two different types available are Aortic and Mitral
| Sizes(mm) | Types |
|---|---|
| #17 | Arotic |
| #19 | Arotic |
| #21 | Arotic |
| #23 | Arotic / Mitral |
| #25 | Arotic / Mitral |
| #27 | Arotic / Mitral |
| #29 | Arotic / Mitral |
| #31 | Mitral |
| #33 | Mitral |
Accessories

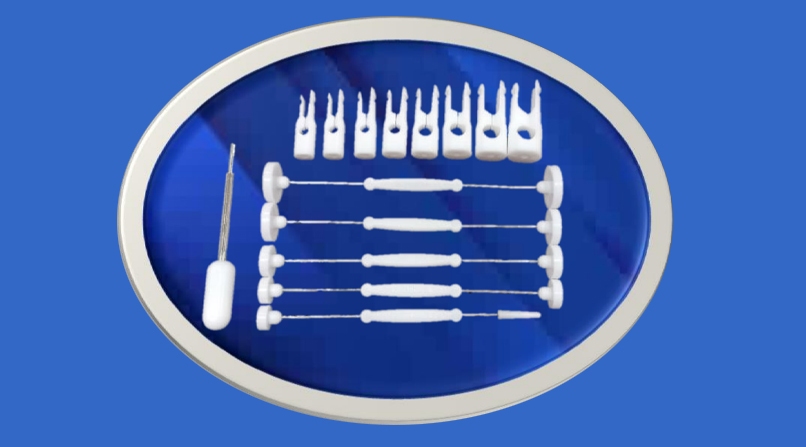

Accessory Set Model ASTC1-H is used along with TTK Chitra Heart Valves Model TC1-H.The Accessory Set ASTC1-H includes:
- Double-headed Malleable Sizers
- Rotators
- Holder Handle
- Test Probe with Single-headed Malleable Sizer
Product Description 2
TTK Healthcare Limited is a listed company in the TTK Group of Companies. Started in 1928, The TTK Group is one of the oldest business houses in India. The group started its activities when the country was under British occupation to supply much needed products in foods, healthcare, personal care and consumer durables.
Types / Variants
TTK Healthcare Limited is a listed company in the TTK Group of Companies. Started in 1928, The TTK Group is one of the oldest business houses in India. The group started its activities when the country was under British occupation to supply much needed products in foods, healthcare, personal care and consumer durables.
TC1
Our dental office in is a state of the art dental facility equipped with the newest technology, capable of handling all of your dental needs. All of our operatories are equipped with intraoral cameras that are able to show us, and you, the precise treatment you might attain on a television screen.
TC1 H
Our dental office in is a state of the art dental facility equipped with the newest technology, capable of handling all of your dental needs. All of our operatories are equipped with intraoral cameras that are able to show us, and you, the precise treatment you might attain on a television screen.
Accessories
TTK Healthcare Limited is a listed company in the TTK Group of Companies. Started in 1928, The TTK Group is one of the oldest business houses in India. The group started its activities when the country was under British occupation to supply much needed products in foods, healthcare, personal care and consumer durables.
Odering Info
TTK Healthcare Limited is a listed company in the TTK Group of Companies. Started in 1928, The TTK Group is one of the oldest business houses in India. The group started its activities when the country was under British occupation to supply much needed products in foods, healthcare, personal care and consumer durables.
Ordering Information
Aortic
| Model No | Cat. No | Valve Size (mm) | Valve Type | Tissue Annulus Diameter (mm) | Valve Orifice Diameter (mm) | Valve Height Closed (mm) | Valve Height Open (mm) | |
|---|---|---|---|---|---|---|---|---|
| TC1 | TC1-H | |||||||
| TC1/TC1-H | 17 A | 17 AH | #17 | Aortic | 17.0 | 12.8 | 5.0 | 12.0 |
| 19 A | 19AH | #19 | Aortic | 19.0 | 14.4 | 5.0 | 13.5 | |
| 21 A | 21 AH | #21 | Aortic | 21.0 | 16.0 | 6.0 | 15.0 | |
| 23 A | 23 AH | #23 | Aortic | 23.0 | 18.0 | 6.0 | 16.9 | |
| 25 A | 25 AH | #25 | Aortic | 25.0 | 20.0 | 6.0 | 18.7 | |
| 27 A | 27 AH | #27 | Aortic | 27.0 | 22.0 | 6.0 | 20.5 | |
| 29 A | 29 AH | #29 | Aortic | 29.0 | 24.0 | 6.0 | 22.5 | |
Mitral
| Model No | Cat. No | Valve Size (mm) | Valve Type | Tissue Annulus Diameter (mm) | Valve Orifice Diameter (mm) | Valve Height Closed (mm) | Valve Height Open (mm) | Mitral Flange Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| TC1 | TC1-H | ||||||||
| TC1/TC1-H | 23 M | 23 MH | 23 | Mitral | 23.0 | 18.0 | 6.0 | 16.9 | 29.0 |
| 25 M | 25 MH | 25 | Mitral | 25.0 | 20.0 | 6.0 | 18.7 | 31.0 | |
| 27 M | 27 MH | 27 | Mitral | 27.0 | 22.0 | 6.0 | 20.5 | 33.0 | |
| 29 M | 29 MH | 29 | Mitral | 29.0 | 24.0 | 6.0 | 22.9 | 35.0 | |
| 31 M | 31 MH | 31 | Mitral | 31.0 | 26.0 | 6.0 | 24.4 | 37.0 | |
| 33 M | 33 MH | 33 | Mitral | 33.0 | 26.0 | 6.0 | 24.4 | 39.0 | |

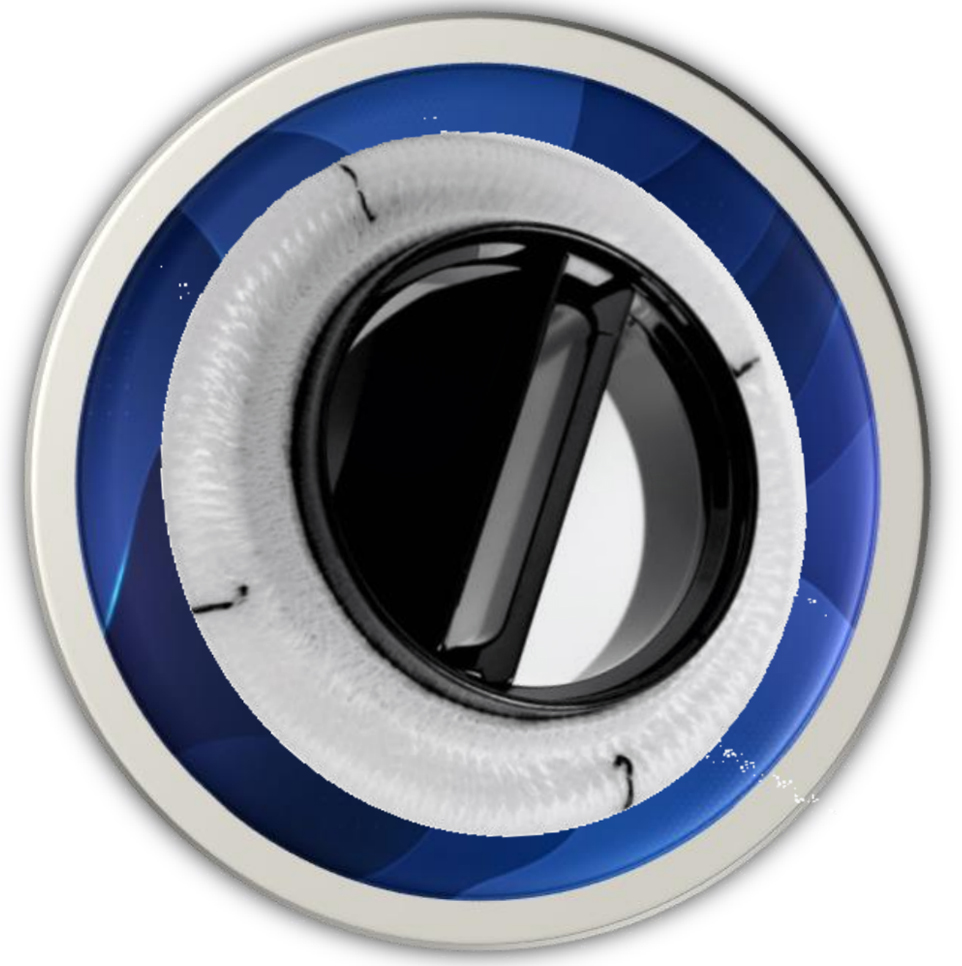

CardiaMed Heart Valve Substitute (Bileaflet)
Intended Use
The CardiaMed Prosthetic bi-leaflet heart valve is intended for the replacement of diseased aortic and mitral native human heart valves.

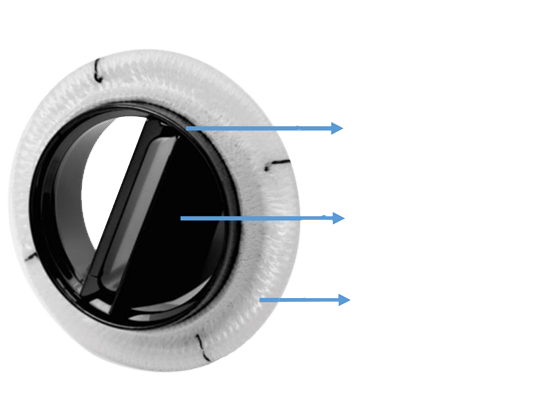

Product Description
Prosthetic heart valves CardiaMed ADM and MDM Consists of the following components:
- Housing with stiffening titanium–alloy ring
- Sewing cuffs of various forms to ensure the best anatomical fit of the valve
- Two semi-disk-shaped leaflets pivoting between open and closing positions.
Specific characteristic of the CardiaMed valve are:
- Solid pyrolitic carbon leaflets and housing;
- Leaflets that can freely rotate within the housing when closing;
- Available in reduced cuff for better positioning in narrow situations.
Over 150,000 valves have been implanted worldwide and that no recalls have taken place nor substantial incidents that were due to the product.
Ordering Information
Aortic
Supra- Annular
| Valve designation | Sewing cuff | Tissue annulus (Mounting Diameter) | External sewing Diameter | Orifice Diameter |
|---|---|---|---|---|
| ADM.17-1Su | Standard | 17.4 | 24.0 | 14.6 |
| ADM.17-RSu | Reduced | 17.3 | 22.1 | 14.6 |
| ADM.19-1Su | Standard | 19.4 | 26.0 | 16.6 |
| ADM.19-RSu | Reduced | 19.3 | 24.2 | 16.6 |
| ADM.21-1Su | Standard | 21.4 | 28.0 | 18.3 |
| ADM.21-RSu | Reduced | 21.4 | 26.3 | 18.3 |
| ADM.23-1Su | Standard | 23.4 | 31.0 | 20.3 |
Intra-Supra- Annular
| Valve designation | Sewing cuff | Tissue annulus (Mounting Diameter) | External sewing Diameter | Orifice Diameter |
|---|---|---|---|---|
| ADM.19-1ln | Standard | 19.5 | 24.0 | 14.6 |
| ADM.19-Rln | Reduced | 19.2 | 23.0 | 14.6 |
| ADM.21-1ln | Standard | 21.5 | 26.0 | 16.6 |
| ADM.21-Rln | Reduced | 21.2 | 25.0 | 16.6 |
| ADM.23-1ln | Standard | 23.3 | 28.0 | 18.3 |
| ADM.23-Rln | Reduced | 23.4 | 27.0 | 18.3 |
| ADM.25-1ln | Standard | 25.3 | 31.0 | 20.3 |
| ADM.27-1ln | Standard | 27.3 | 33.0 | 22.1 |
| ADM.29-1ln | Standard | 29.3 | 35.5 | 24.1 |
Mitral
Supra - Annular Position
| Valve designation | Sewing Cuff | Tissue annuals(Mounting Diameter) | External Sewing Diameter | Orifice Diameter |
|---|---|---|---|---|
| MDM.25-1Su | Standard | 25.2 | 36.5 | 22.1 |
| MDM.27-1Su | Standard | 27.2 | 38.5 | 24.1 |
| MDM.29-1Su | Standard | 29.2 | 40.5 | 24.1 |
| MDM.31-1Su | Standard | 31.2 | 42.5 | 24.1 |
| MDM.33-1Su | Standard | 33.2 | 44.5 | 24.1 |
Intra-Supra-Annular Position
| Valve designation | Sewing Cuff | Tissue annuals(Mounting Diameter) | External Sewing Diameter | Orifice Diameter |
|---|---|---|---|---|
| MDM.25-1ln | Standard | 25.5 | 34.0 | 20.3 |
| MDM.27-1ln | Standard | 27.5 | 36.0 | 22.1 |
| MDM.29-1ln | Standard | 29.5 | 38.0 | 24.1 |
| MDM.31-1ln | Standard | 31.5 | 39.0 | 24.1 |
| MDM.33-1ln | Standard | 33.5 | 41.0 | 24.1 |
Download Brochure
Download Instructions For Use (IFU)
Products Under Development

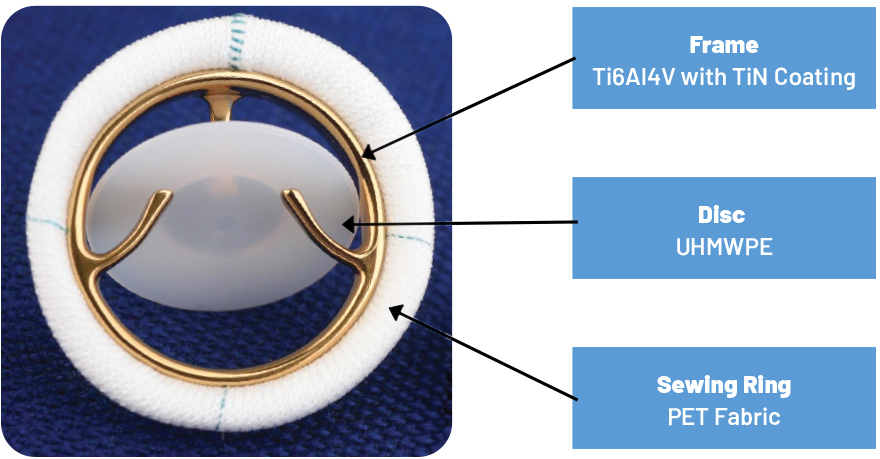

The next generation TTK Chitra - Titanium Heart Valve (Model TC2) is a rigid tilting disc mechanical heart valve substitute. It has three components:
- Metal frame made of Titanium alloy (Ti6Al4V) coated with Titanium Nitride (TiN)
- Disc made of Ultra High Molecular Weight Polyethylene (UHMWPE) which is pivoted eccentrically in the metal frame and
- Sewing ring made of Polyethylene Terephthalate (PET) fabric, fixed around the metal frame.
Model TC2 valve has undergone comprehensive in vitro and pre-clinical evaluation conforming to the requirements of IS/ISO 5840:2005 and IS0 5840:2015 and is now undergoing Clinical investigation.
